Decoding the Blueprint: Essential Architectural Symbols for Beginners

A floor plan is a map of your future life, but it’s written in a language of symbols, abbreviations, and lines that can look like hieroglyphics to the untrained eye. Whether you’re planning a backyard shed, reviewing contractor drawings for a home renovation, or dreaming up your next DIY small house, understanding these notation systems, commonly referred to as blueprint symbols, transforms confusion into confidence.

Misinterpreting a single symbol can lead to costly mistakes. That seemingly thin line might represent a load-bearing wall that can’t be removed. The arc beside a doorway determines whether your new sofa will fit through the opening. The small circles and lines marking electrical outlets dictate where you can place furniture without blocking access to power.

This guide serves as your Rosetta Stone for architectural notation, translating standard symbols into the real-world building elements they represent. We’ve curated this specifically for homeowners, renovators, and DIY enthusiasts who need practical knowledge without the complexity of professional architectural training.

The shell: walls, windows, and structure

Every building begins with its physical boundaries. Understanding how architects represent walls and windows helps you grasp the fundamental skeleton of any structure before diving into interior details.

Wall lines and their hierarchy

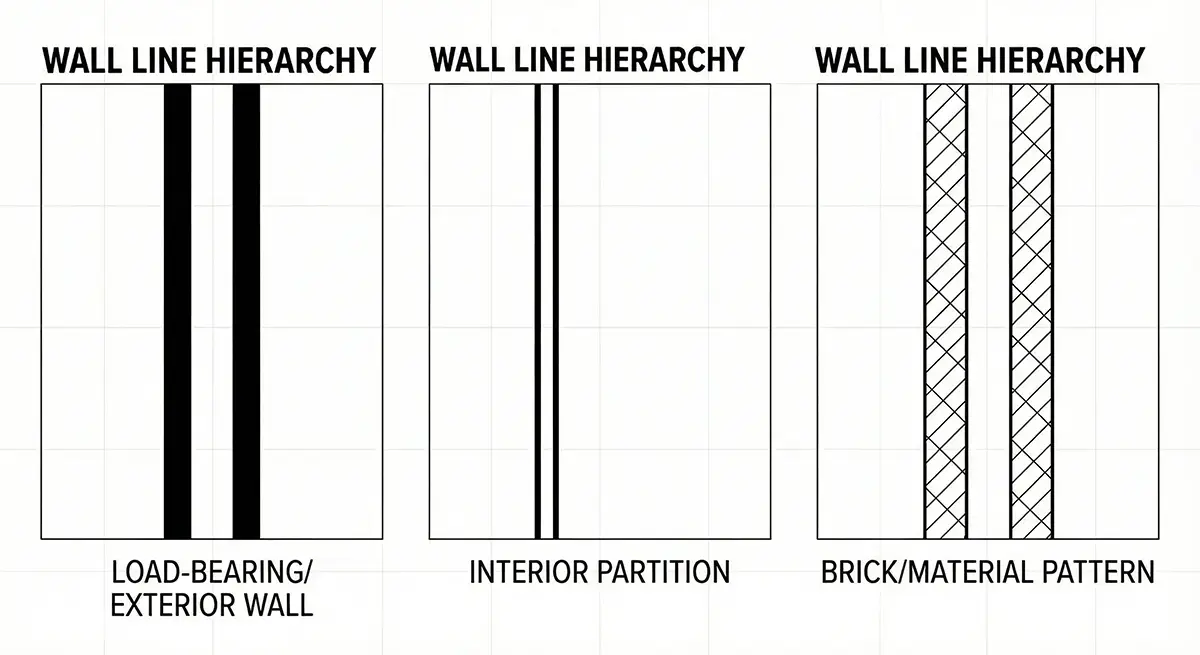

Architects use line thickness as a visual language to communicate structural importance. When you look at a floor plan, the boldness of each line tells you something crucial about what that wall does. By manipulating lineweights, drafters create a strict lineweight hierarchy that results in “visual popping”, a technique where heavy structural elements stand out boldly against lighter, informational details, allowing your eye to instantly separate the house from the furniture.

• Bold or thick lines typically represent exterior walls or structural load-bearing walls. These are cut through at the floor plan’s viewing height, usually about four feet above the floor. A specific wall type often carries a tag like “E1″ referring to a detailed assembly schedule. For instance, testing reveals that a standard exterior wall assembly (Tag E1) often consists of stucco, backer board, a 40mm water-resistant barrier, 1/2″ plywood sheathing, 2×6 studs at 16″ on center, batt insulation, 6 mil polyethylene vapor barrier, and 1/2” gypsum board. Never assume these walls can be removed without consulting a structural engineer.
• Thinner lines indicate interior partitions, which are non-load-bearing walls that divide spaces without supporting the structure above. These are generally easier to modify or remove during renovations.
• Hatched or shaded walls often indicate specific construction materials. Diagonal lines might represent brick, dots could mean concrete, and different patterns distinguish existing walls from new construction in renovation plans.

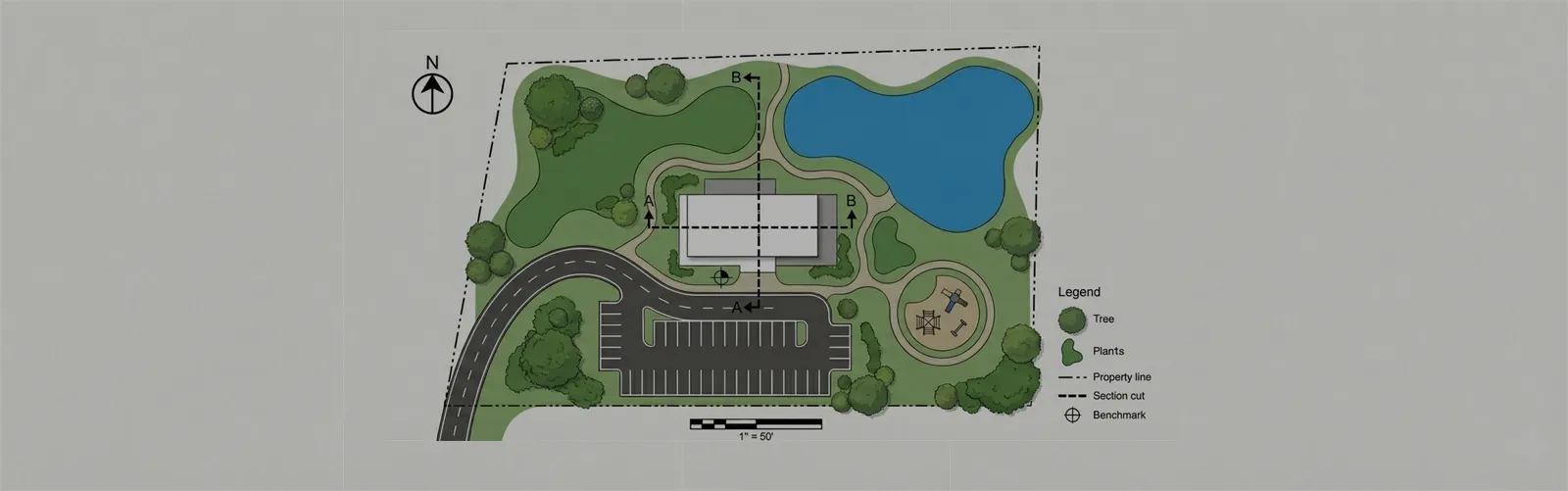

While wall lines define the building, the lines surrounding it tell a different story. On site plans, thick blue broken lines indicate property boundaries, distinguishing your land from the neighbors’, while thin bent lines represent elevation contours, with specific numbers (e.g., 75.228) denoting meters above mean sea level to help builders manage grading.

Window types and their symbols

Windows appear as breaks in wall lines, but their internal symbols reveal exactly how they operate. This matters for ventilation planning, emergency egress, and furniture placement.

• Double-hung and sliding windows appear as three parallel lines within the wall opening. These lines represent the glass panes sliding past each other and the window frame.
• Casement windows show a simplified angled line extending from one side, indicating which direction the window cranks outward. The hinge point sits opposite the angled line.
• Clerestory and high windows often appear as dashed lines rather than solid ones. The dashing indicates these windows sit above the plan’s cut plane, typically near the ceiling for natural light without sacrificing wall space.

Navigation and wayfinding symbols

A set of blueprints is not just one drawing; it is a stack of interconnected maps. Navigation symbols act as the GPS, telling you exactly where to look for more information. Without understanding these markers, you are looking at a map without knowing which road leads to your destination.

Section cuts and elevation markers
You will often see a circle with a triangle or arrow attached to it pointing at a specific wall. This is an elevation marker. It tells you that if you stand where the circle is and look in the direction of the arrow, there is a separate drawing showing you that wall face-on. The numbers inside the circle tell you exactly which page to turn to. In sheet numbering (e.g., A201), the first digit often represents the sheet type sequence: 0 for project data, 1 for floor plans, and 2 for elevations, helping you flip to the right section instantly.

Detail callouts
When a specific area requires a closer look, like a complex stair connection or a custom cabinet, architects use a detail callout. This looks like a magnifying glass circle around a specific corner. The line connecting it to a bubble acts as a hyperlink, routing you to a larger-scale drawing that reveals the nuts and bolts of that specific junction.

The openings: doors and their swings

In small spaces, door placement becomes critical. The way a door opens determines traffic flow, furniture arrangement, and even whether two doors can function simultaneously. Understanding door symbols prevents the frustration of discovering conflicts after construction.

Reading the swing arc

The curved line attached to every door symbol represents its swing path. This arc shows exactly how the door opens and precisely how much floor space it consumes during operation. The straight line connected to the arc indicates the door panel itself when fully open.

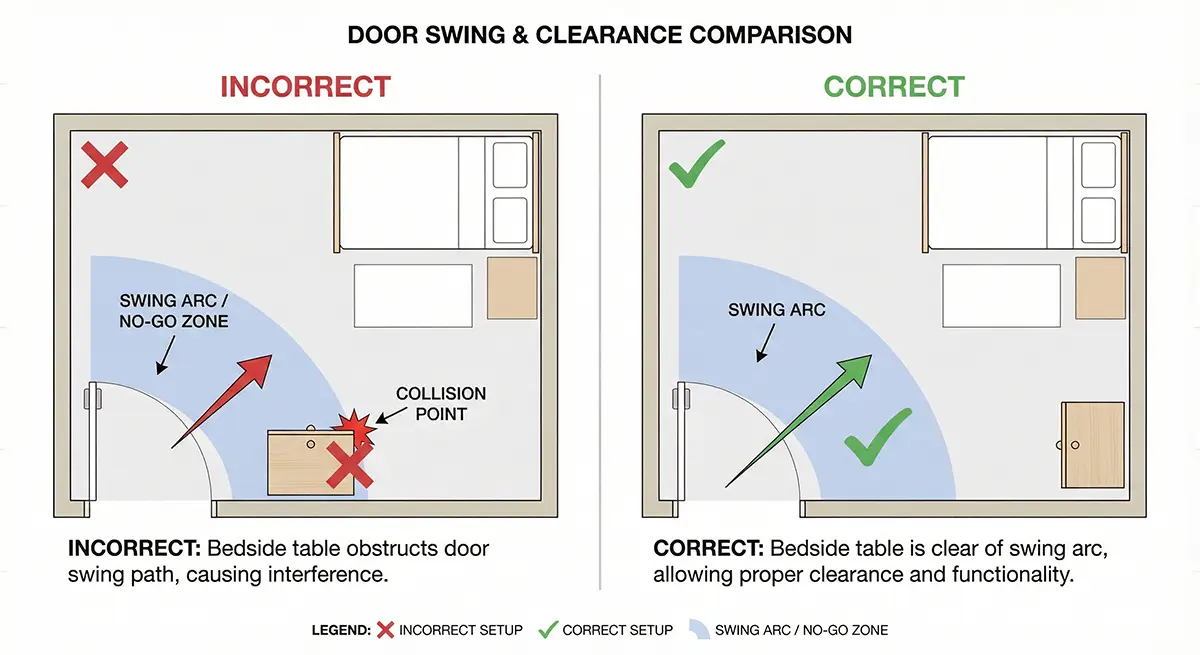

Practical tip: Never place furniture inside a door’s swing arc. That nightstand or bookshelf might fit perfectly when the door is closed, but you’ll regret the placement every time you need full access to the room.

Reading door and window tags

Beginners often confuse the symbol with the tag. The symbol is the drawing of the door itself; the tag is the shape (often a circle or hexagon) containing a number or letter floating next to it. This tag links the drawing to a “Schedule”, a spreadsheet usually found on the back pages. If you see a door tagged “D04”, do not guess its material. Go to the Door Schedule, find row D04, and you might discover it’s a solid core oak door with a 90-minute fire rating, costing three times what you budgeted for a hollow core slab.

Common door varieties

• Standard hinged doors display the classic ninety-degree arc showing the full swing path. The arc’s direction reveals whether the door swings left or right, into or out of a room.
• Pocket doors appear as thin rectangles sliding into the wall’s thickness. These space-savers eliminate swing clearance entirely, making them invaluable in small houses, tight hallways, and bathrooms where every square foot counts.
• Bifold doors show as V-shaped symbols indicating panels that fold against themselves. You’ll commonly see these on closets where a full door swing would block adjacent spaces.
• Cased openings appear as dashed lines or simple breaks in wall lines with no door symbol attached. These represent archways or pass-throughs where you can move freely between spaces without a door.

The systems: electrical and reflected ceiling plans

Electrical symbols represent the invisible infrastructure that powers modern living. This layer of the blueprint determines where you can plug in devices, how you’ll control lighting, and what specialized circuits support major appliances. Getting this wrong means extension cords snaking across floors or expensive retrofits after construction. These notations are part of the broader family of MEP Symbols (Mechanical, Electrical, and Plumbing), which overlay the structural shell with active systems.

Switch notation

Light switches appear as small S-shaped symbols or the letter S near doorways and entry points. The notations beside them tell you how many locations control each light.

• S or $ indicates a single-pole switch controlling a light from one location only.
• S3 or $3 marks a three-way switch, allowing you to control the same light from two locations. Essential for stairways, long hallways, and rooms with multiple entry points.
• S4 or $4 denotes a four-way switch, used in combination with two three-way switches to control lights from three or more locations.

Outlets and receptacles

• Standard duplex outlets appear as circles with two short parallel lines extending from one side. These provide standard household power for lamps, chargers, and everyday electronics.
• GFCI outlets (Ground Fault Circuit Interrupter) show additional notation, often with the letters GFCI nearby. Building codes require these near water sources including kitchens, bathrooms, garages, and outdoor locations. They cut power instantly if electrical current takes an unexpected path, preventing shocks.
• 220V or 240V outlets appear with special notation, often a triangle or circle with three extending lines. These high-voltage receptacles power electric dryers, ranges, and other major appliances requiring dedicated circuits.

Reflected ceiling plans (RCP) and lighting

Architects and builders draw Reflected Ceiling Plans (RCP) to show the dimensions, materials, and other key information about the ceiling as if you were floating above the room looking down at a mirror on the floor. This view allows you to see the relationship between lights, ceiling grids, and HVAC registers without floor furniture cluttering the view.

• Ceiling-mounted fixtures typically appear as simple circles positioned within rooms. Their placement indicates both the light’s location and often its intended purpose for general illumination.
• Commercial lighting symbolsare highly specific on RCPs. For example, experienced lighting designers ensure that 2×4 rectangular symbols are used for high-coverage LED lights in commercial kitchens, while thin rectangles represent linear LEDs for hallways and offices.
• Recessed can lights show as smaller open circles, sometimes with additional notation indicating trim style or housing type. These sit flush with the ceiling for a clean, modern appearance.
• Wall sconces appear as short lines projecting from wall surfaces with a fixture symbol at the end. Their placement height and location affect both ambient lighting and decorative impact.

The mechanics: stairs and verticality

Floor plans present a unique challenge when showing stairs because they must convey vertical movement on a horizontal drawing. Understanding stair notation helps you visualize how levels connect and how much space vertical circulation consumes.

The cut line

Stairs often appear cut off partway up with a jagged diagonal line, sometimes called a break line. This occurs because floor plans represent a horizontal slice through the building at roughly four feet above the floor. Stairs that continue upward pass through this imaginary cut plane, so architects show only the portion below the cut. The jagged line indicates the stairway continues beyond what the plan shows.

Directional arrows and notation

• UP arrows indicate the direction of travel to reach the next floor above. Following these arrows shows you how someone would walk from the current level upward.
• DN or DOWN arrows show travel toward a basement, lower level, or sunken area. These help you understand relationships between split levels or connections to below-grade spaces.
• Spot elevationsare critical for understanding precise heights. Spot elevation markers differ by context: a circle divided into black/white quadrants is used for ground levels, whereas a circle containing a grid line is used to mark building heights like roof ridges.
• Parallel lines crossing the stair represent individual risers and treads. Counting these lines tells you how many steps the stairway contains, which matters for headroom calculations and building code compliance.

Dimensions and annotations: reading the numbers

Symbols tell you what something is, but dimensions tell you how big. Understanding how architects communicate measurements ensures your furniture fits, your appliances have clearance, and your project stays on budget.

Dimension lines

Measurements appear along thin lines with tick marks, arrows, or small dots at each end indicating where the measurement starts and stops. The number between these markers shows the distance, typically in feet and inches for residential work in the United States, or meters and centimeters elsewhere.

Dimension strings often chain together, with individual room dimensions adding up to overall building dimensions. When checking plans, verify that these chains total correctly, as mathematical errors occasionally slip through drafting. These measurements become critical when verifying your design fits within setback lines and building envelopes established by local zoning ordinances.

Beyond simple linear measurements, you will encounter reference symbols that handle “routing to detail.” These are not dimensions but instructions. A symbol like “3/A501” appearing near a cabinet isn’t a measurement; it commands you to go to Sheet A501, Drawing 3. Ignoring these routing symbols is the fastest way to miss critical custom details that don’t fit on the main floor plan.

Common abbreviations cheat sheet

Architects use standardized abbreviations to keep drawings clean and readable. Here are the ones you’ll encounter most frequently:

Professional insights: architectural graphics 101

The difference between a drawing that gets built correctly and one that causes expensive change orders often comes down to graphic consistency. Architects like Bob Borson emphasize that clarity trumps artistry when it comes to construction documents. He often points out the “symbol graveyard”, drawings cluttered with ineffective graphics like keynote marks that are too small to read or one-size-fits-all symbols that don’t distinguish between materials.

If you are creating your own plans or managing a renovation, do not reinvent the wheel. Use a Drawing Symbol Template to ensure your symbols match industry standards. Using the standard symbol for a supply air vent (an X inside a box) works better than inventing your own pretty icon that the HVAC installer won’t recognize. Consistency allows the contractor’s eye to scan the page and spot anomalies instantly.

Putting it all together

Architectural symbols may vary slightly between architects and regional conventions, but the underlying logic remains consistent. Bold lines mean structural importance. Arcs show movement paths. Circles and symbols reveal hidden systems. Once you internalize these patterns, any floor plan becomes readable regardless of who drew it, as these symbols function as effective wayfinding devices guiding you through the construction logic.

Start by identifying the shell, walls, windows, and the overall footprint. Then trace the openings, paying attention to door swings and their impact on furniture placement. Next, map the electrical layer to understand where power lives. Finally, check dimensions against your actual furniture measurements and lifestyle needs.

Download our Quick-Reference PDF Symbol Key to keep these translations handy during your next project review. Print it out, tape it to your jobsite clipboard, or save it to your phone for instant reference when questions arise.
